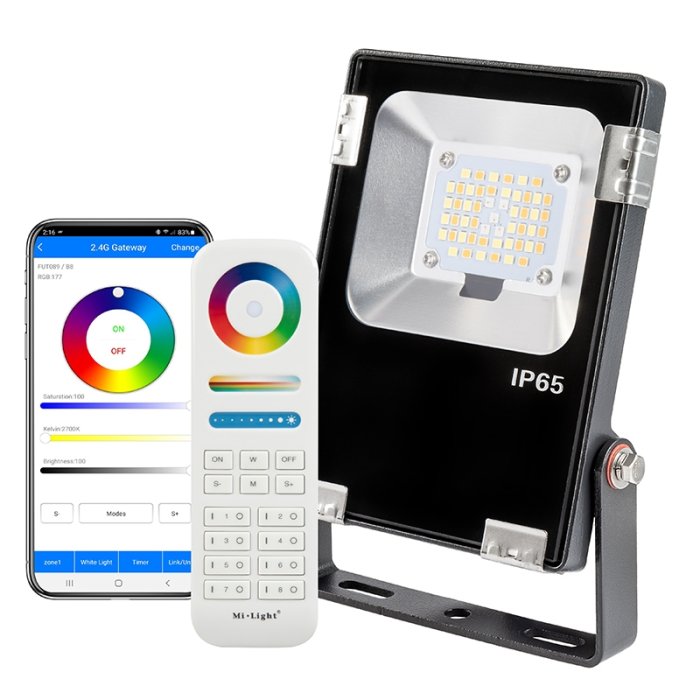

10W Smart LED Flood Light Fixture - 120V - MiBoxer - RGB+Tunable White - Up To 900 Lumens - Optional Remote or Wi-Fi Hub
Part Number:
FL-RGBCCT-10W-120V-x
Manufacturer Part Number:
$59.99
ea.
Was
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Produces a full spectrum of colors and adjustable white light (2200K–6500K)
- Pair with an RF remote or Wi-Fi Hub for flexible wireless control
- Fully compatible with MiBoxer series controllers
- Offers nine dynamic lighting patterns when used with an optional controller
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview
The Smart LED Flood Light brings versatile, tunable lighting to both outdoor landscapes and indoor venues, featuring wireless control options for ultimate convenience. With a wide 120° beam angle, this floodlight integrates RGB+Tunable White LEDs to produce the full spectrum of colors and whites, allowing for dynamic patterns, single-color choices, and adjustable brightness levels. Control with a compatible RF remote, or pair with the MiBoxer WiFi Hub and Smart Life or Tuya Smart app for smart device management. Designed to withstand extreme weather conditions and commercial applications, the FL-RGBCCT's durable build ensures reliable performance, while its sleek design enhances any event space or decorative environment.
Product Details:
- Black aluminum body, tempered glass lens
- Integrated heat sink for thermal management
- Includes adjustable yoke mount with ground spike
- Electrical connection: 3-prong plug with 5ft (1.5m) cable
- 120° beam angle
- 0-100% dimmable with optional RF Remote or WiFi Controller
- Receiving range: 98.4ft (30m)
- IP65 Waterproof rating
Documents
FL-RGBCCT Specification Sheet Dimensional Drawings
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
MiBoxer Smart Ecosystem
MiBoxer Remote Ecosystem
Specifications
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
Tunable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CE, FCC |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
140 mA @ 120 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
Remote Controlled , Smart App Controlled |
|
Distribution Type
Distribution Type
|
NEMA 7x7 |
| Equivalency | 60 Watt Halogen |
| Finish | Black |
| Input Connection Type | 3-Prong Wall Plug |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | RGB+Tunable White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Glass |
| Lumens | 900 Lumens |
| Mount Type | Yoke Bracket |
| Operating Voltage | 120 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
No Photocell |
| Product Materials | Aluminum Housing |
| Warranty | 3 Year |
| Wattage | 10 Watts |
| Wire Length | 56.4 in. (4.7 ft) |
| Part NO | Smart Home Ecosystem |
|---|---|
| FL-RGBCCT-10W-120V | |
| FL-RGBCCT-10W-120V-RGBCCT-MZ8-RF | |
| FL-RGBCCT-10W-120V-WIFI-CON2 | Amazon Alexa, Google Home |
