Day-Brite 2x2 Backlit Flat Panel LED Light - Selectable CCT - Selectable Wattage - Up To 3,982 Lumens - 3500K / 4000K / 5000K - 19W / 29W / 34W
Part Number:
190096193110
Manufacturer Part Number:
2SBP2035L8DS-2-UNV-DIM, 912401592649
$59.99
ea.
Was
In Stock
Features
- Selectable wattage and CCT
- Replaces three 17W T8 tubes
- Diffuser provides high efficiency and visual comfort
- 0-10V dimming down to 5%
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview

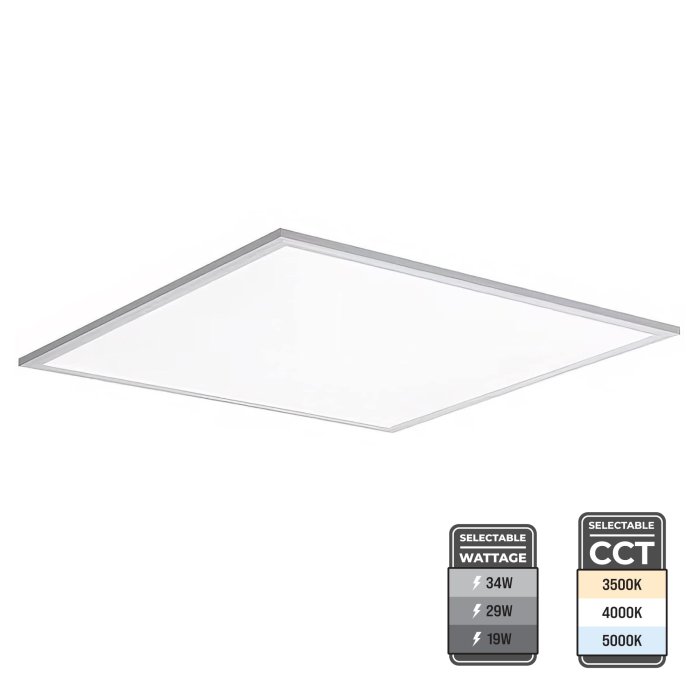

The Day-Brite 2x2 LED Flat Panel Light is a high-performance upgrade, equivalent to three 17W T8 tubes. Built with an extruded aluminum frame and a sturdy steel driver housing, this fixture is designed for versatility, fitting seamlessly into recessed, surface-mounted, or T-grid drop ceiling installations. It features convenient switches on the top for easy selection of color temperatures (3500K, 4000K, 5000K) and wattages (19W, 29W, 34W). With 0-10V dimming capability down to 5%, this energy-efficient LED panel is an excellent choice for enhancing lighting in offices, schools, and hospitals
Product Details:
- Extruded aluminum frame
- Integrated clips for T-grid installation
- 120-277 VAC
- UL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
Day-Brite CFI Selectable Backlit Panel – Specification Sheet Applications:
- Commercial Buildings
- Educational Facilities
- Hospitals
- Offices
- Panel Lights
- Retail Shops
- Schools
- Trade Shows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Brand | Day-Brite CFI |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Listed (cULus) |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
175/265/310 mA @ 120 VAC, 75/115/135 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 67000 Hours |
| Lumens | 2320 Lumens, 3480 Lumens, 3980 Lumens |
| Manufacturer Part Number | 2SBP2035L8DS-2-UNV-DIM, 912401592649 |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Weight | 2.4 lb (1.1 kg) |
| UL File Number | E357443 |
| Warranty | 5 Year |
| Wattage | 19 Watts, 29 Watts, 34 Watts |
