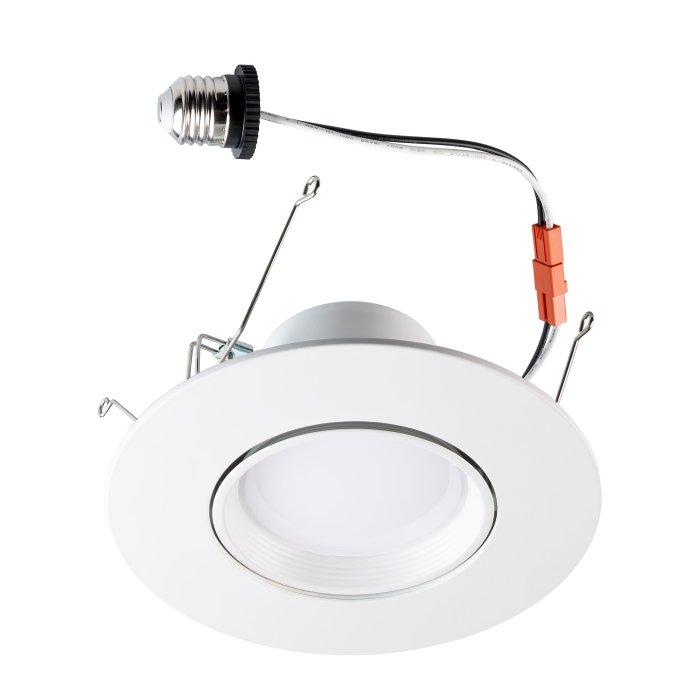

6" LED Gimbal Recessed Retrofit Downlight - 12W - Ultra-High 97 CRI - Selectable CCT - TRIAC Dimmable - 1,000 Lumens
Part Number:
DL56DG-A1-SW3B12
Manufacturer Part Number:
$24.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Highly accurate color rendering with 97 CRI
- Adjustable CCT: 3000K, 4000K, or 5000K
- 360° rotation and 60° tilt for precise light direction
- Smooth dimming capability with TRIAC dimmers
- Easy installation with E26 base adapter and spring clips
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Overview
The 6" 12W LED Gimbal Recessed Retrofit Downlight offers superior color accuracy with an ultra-high CRI of 97, ideal for applications where vibrant color is essential, such as kitchens, bathrooms, art galleries, and retail spaces. Its 360° rotation and 60° tilt enable precise control of the 110° beam, allowing users to direct light exactly where needed. With selectable CCT options of 3000K, 4000K, and 5000K, this downlight is versatile for any environment. Installation is quick and hassle-free using the included E26 screw base adapter and spring clips, fitting both 5" and 6" recessed housings. The downlight supports smooth, flicker-free dimming with TRIAC dimmers, ensuring perfect lighting in every setting.
Product Details:
- Steel and aluminum housing
- Frosted polycarbonate lens
- Suitable for damp locations
- 110° beam
- TRIAC dimmable
- 120 VAC
- ETL Classified
DL56DG-A1-SW3B12 Specification Sheet Applications:
- Art Galleries
- Basements
- Bathrooms
- Commercial Downlights
- Home Bars
- Home Theaters
- Kitchens
- Living Rooms
- Offices
- Residential Downlights
- Retail Shops
- Retrofit Lighting
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Ultra-High CRI
Ultra-high CRI (Color Rendering Index) values mean a light source accurately renders colors. CRI measures how accurately a light source shows an object's true colors and is calculated on a scale from 0 to 100, with 100 indicating perfect color rendering matching the spectrum of natural sunlight. In contrast, a low CRI value indicates a less precise rendering. Color accuracy is essential for specific applications, such as portrait studios, retail stores, hospitals, medical and commercial offices, display cases, and warehouses, where telling the difference between similar colors is crucial.
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
| Can Size | 5 inch, 6 inch |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Classified |
|
CRI
CRI
|
97 |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
143 mA |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
TRIAC |
| Efficacy | 83 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations |
| Equivalency | 75 Watt Incandescent |
| Finish | White |
| Input Connection Type | E26 (Medium Base) |
| IC Rated | Yes |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 35000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 1000 Lumens |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.7 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 3 Year |
| Wattage | 12 Watts |
