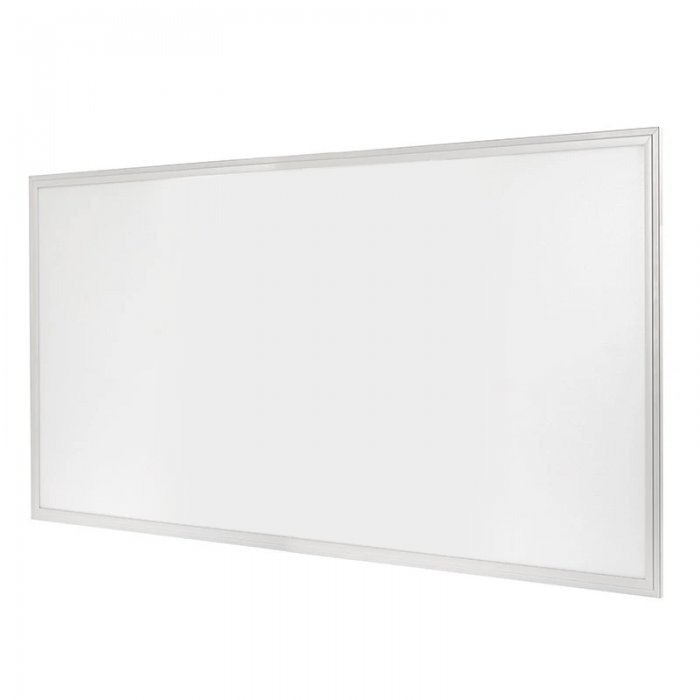

2'x4' Even-Glow® Tunable White LED Light Panel - 60W - 6,600 Lumens - Dimmable
Part Number:
LPD-TWR24-60-x
Manufacturer Part Number:
Starting at
$110.99
ea.
Starting at
Was
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- An optical diffuser with Even-Glow® technology creates a uniform light distribution
- Slim and durable aluminum alloy frame easily installs in drop ceilings
- Adjustable color temperature: 3000K-5000K
- Control with remote, wall switch, or both together
- One controller can control multiple panels simultaneously
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 2'x4' Tunable White LED Light Panel is the perfect solution for replacing outdated troffers, delivering an impressive 6,600 lumens at 60 watts. Engineered with Even-Glow® technology, this panel offers uniform light distribution while the optical diffuser eliminates visible hotspots, providing consistent, high-quality illumination. Control the color temperature and dimming function with ease using a compatible remote or wall control—both of which can manage multiple panels, reducing the need for additional controllers. Installation is flexible with options for surface mounting on drywall ceilings or wall mounting using the optional surface mount kit, and suspension mounting on standard or unfinished ceilings with the suspension mount hanging kit. Whether for new construction or retrofitting existing fluorescent lighting, this panel is ideal for modern, energy-efficient lighting solutions.
A remote or wall switch is required for CCT adjustment.
A remote or wall switch is required for CCT adjustment.
Product Details:
- Aluminum frame with steel backing
- Available as a drop ceiling mount or with a surface mount kit
- 0-10V dimmable with optional remote or wall dimmer
- 120-277 VAC input
- Certified by UL
- 5-year warranty
LPD-TWR User Manual Applications:
- Commercial Buildings
- Educational Facilities
- Hospitals
- New Construction
- Offices
- Panel Lights
- Retail Shops
- Schools
- Sign Lighting
- Trade Shows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
Tunable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
220 mA @ 277 VAC, 500 mA @ 120 VAC |
| Dimensions | 2ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V, PWM, Remote Controlled |
| Efficacy | 110 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail, Quick Connector |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Tunable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 6600 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Materials | Aluminum Frame, Polystyrene Light Guide Panel, Polystyrene Lens, Steel Backing |
| UL File Number | E469515 |
| Warranty | 5 Year |
| Wattage | 60 Watts |
| Part NO | Mount Type | Product Weight |
|---|---|---|
| LPD-TWR24-60 | Drop Ceiling | 13.3 lb (6.0 kg) |
| LPD-TWR24-60-RC | Drop Ceiling | 13.3 lb (6.0 kg) |
| LPD-TWR24-60-SMK | Surface Mount | 16.8 lb (7.6 kg) |
| LPD-TWR24-60-SMK-RC | Surface Mount | 16.8 lb (7.6 kg) |
| LPD-TWR24-60-SMK-WS | Surface Mount | 16.8 lb (7.6 kg) |
| LPD-TWR24-60-WS | Drop Ceiling | 13.3 lb (6.0 kg) |
