2x2 LED Troffer Light - 35W - Built-In Keilton ECO Sensor - Tunable and Selectable CCT - Up To 4,480 Lumens - 2-Pack
Part Number:
TLFD-TW3C22-835BLE
Manufacturer Part Number:
$199.99
per Pair
Was
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Integrated ECO sensor creates Networked Lighting Controls (NLC) with Bluetooth MESH

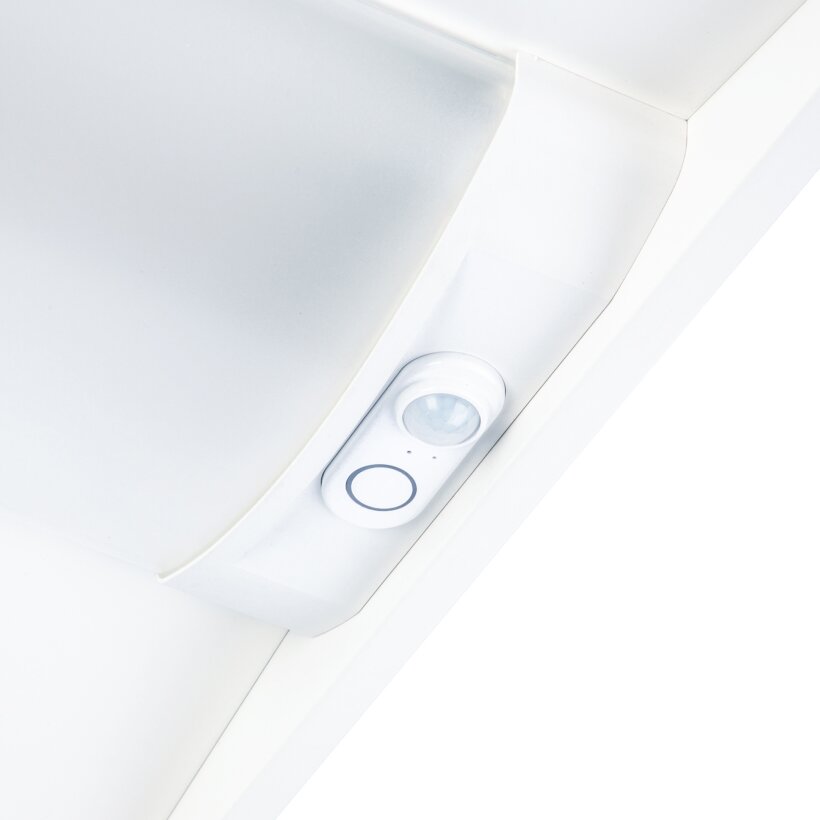

- Sensor combines PIR motion detection and daylight harvesting
- Tunable CCT from 2700K to 6500K using Keilton App
- Gold-level UL 1376 IoT Security rating for secure data transmission
- Equivalent to fixtures with three 17W T8 tubes
- DLC 5.1 Premium
See our full selection of Networked Lighting Controls.
View more details
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Related Products
LED Troffer Light with Built-In Bluetooth MESH Sensor
Integrated Sensor
Integrated Bluetooth PIR motion sensors enable each light to wirelessly connect, forming a seamless Bluetooth MESH network.
App Controlled
Control all of your lights with the ® Network Lighting Control APP. Set Schedules, create Zones, Groups, Scenes, adjust brightness levels and fine tune your CCT, all done through your mobile device.
Gold Level UL 1376 IoT Security Rating
With a Gold Level UL 1376 IoT Security Rating, you can rest assured that your network is safeguarded against any external cybersecurity threats.
Overview
The 2x2 LED Troffer Light features durable steel construction with a low-profile design, making it easy to install in standard T-grid drop ceilings. Each 35-watt fixture replaces a traditional 3-lamp 17W T8 tube setup and delivers up to 4,480 lumens. The built-in ECO sensor combines PIR motion detection and daylight harvesting. Control the light’s color temperature via Bluetooth MESH, selecting from preset CCTs (3000K, 3500K, 4000K, and 5000K) or fine-tuning from 2700K to 6500K through the Keilton app or with the wall switch. Each light is Gold-level UL 1376 IoT Security rated, ensuring protected data transmission and app security. Designed for offices, schools, and hospitals, this energy-efficient troffer is available exclusively in 2-packs, with a larger 2x4 option also offered.
Product Details:
- Steel housing with white frame and white polycarbonate lens
- Gold Level UL 1376 IoT Security Rating
- 120-277 VAC
- Certified by UL
- DLC 5.1 Standard
- 5-year warranty
Documents
Keilton App Instructions
TLFD-TW3C22-835BLE 40K 35W IES File Applications:
- Basements
- Commercial Suspended Grid Ceilings
- Hospitals
- Hotels
- Offices
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
UL Solutions has created a rating system that verifies the security features of connected products. UL security experts assess products and rate them for one of five security levels, ranging from Bronze to Diamond. Each level of the UL Internet of Things (loT) security rating system represents a set of security capabilities implemented in the product by the manufacturer. See the UL loT Security Rating Levels Guide for additional information on specific levels.
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium, UL IoT Security Rating: Gold |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
140 mA @ 277 VAC, 320 mA @ 120 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 128 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 2 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Lumens | 4480 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Product Weight | 6.6 lb (3.0 kg) |
| UL File Number | E469515 |
| Warranty | 5 Year |
| Wattage | 35 Watts |
| Wire Gauge | 18 AWG |
